Specifications
Part Number |
IFB-40005 |
|---|---|
Vdd Min (V) |
3.3 |
Vdd Max (V) |
5.5 |
RoHS |
Yes |
Length (mm) |
26 |
Width (mm) |
26 |
Height (mm) |
24 |
Home > Product Categories > Breakout Boards > Power Switch Breakout with JST Connector

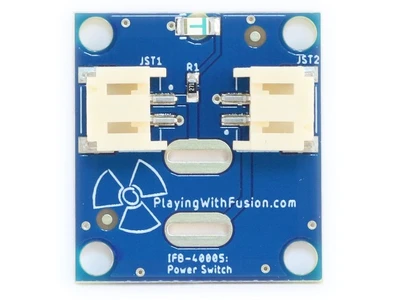

Power Switch Breakout with JST Connector RoHS
 |
 |
 |
|
 |
|
Description
The power switch PCB is a simple breakout for a power switch with an LED indicator and JST connectors. Utilizing the same connector as Playing With Fusion's R3aktor board, this breakout makes an excellent addition to any project involving a battery.
Features
- Dimensions: 24 x 26 mm
- M3 mounting holes for secure attachment
- (x2) 2-pin JST PH (2 mm) connectors
- Supply voltage: 3.3-5V
- Indicator LED identifies if power is on
- Open source
- Designed, manufactured, tested, and shipped from the USA
Related Files
Tech Articles and External Links
| Github: RC Transmitter | Github: RC Transmitter |
