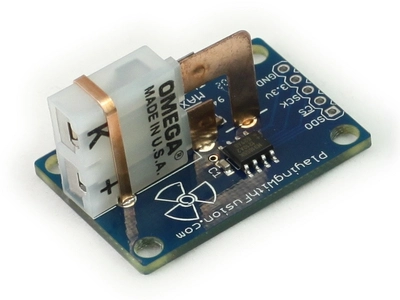

Breakout board for the MAX31855T digital thermocouple interface IC. Measured temperature range is -270C-400C with known thermal characteristics and output resolution of 0.25C. This sensor supports a larger operating range (specifically in the negative range) than its predecessors, the MAX6674 and MAX6675, though it is not pin-pin compatible. This board is interfaced with a 0.1" 1x5 pin header, has a vertical mini thermocouple connector and four mounting holes for standoffs and 4-40 screws.

Note: There is a typo in the silkscreen that can be seen in the pictures. Instead of 'MAX31855T' the boards are labeled as 'MAX31885K'. This does not affect functionality in any way.

Features

• Measures -270C-400C (extended range)
• 14-bit SPI interface
• Supply voltage range: 3.0V - 3.6V
• Detects shorts to GND or Vcc
• Detects open thermocouple
• Other versions available (K, J, N, T and E standard). Contact Customer Service to place a custom order.
• Mounting holes for 4-40 sized screws
• Connections are spaced for 0.1" pin header
• Designed, manufactured, tested and shipped from the USA
